Dye Penetrant Crack Test

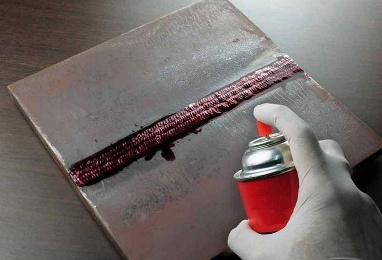

The Dye Penetrant Crack Test is a widely used NDT technique to detect surface-breaking defects such as cracks, porosity, and seams in metals and non-porous materials. A liquid penetrant is applied to the surface, allowed to seep into defects, and then removed from the surface. A developer is applied, which draws out the trapped penetrant, creating visible indications of flaws. This method is simple, cost-effective, and highly sensitive for surface defect detection.

Applications

• Surface Crack Detection:Identify cracks, pores, and seams in metals, alloys, and non-porous components.
• Weld Inspection:Evaluate weld quality and detect surface discontinuities.
• Quality Control:Ensure components meet surface integrity standards and specifications.
• Maintenance & Safety Checks:Inspect critical parts in aerospace, automotive, and industrial equipment.
• Failure Analysis:Locate surface defects contributing to material or component failure.
• Research & Development:Assess prototype materials, new alloys, and surface treatments.
• Coatings & Plating Inspection:Detect surface defects under coatings or protective layers.
